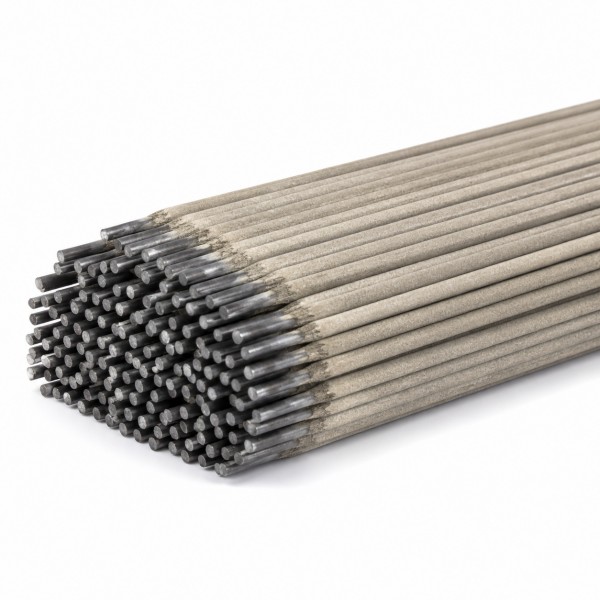

How To Choose Welding Electrodes

Introduction

Selecting the right welding electrodes can determine whether a weld holds strong or develops cracks, excessive spatter, or poor fusion. Improper choices often lead to costly rework, inconsistent penetration, and frustration on the job site. Understanding how to align electrode type with base metal, thickness, and joint configuration is essential for reliable results.

Readers will gain clarity on interpreting AWS electrode codes, choosing the correct flux and polarity, preventing common defects, and applying best practices for storage and handling. The insights provided help ensure efficient, code-compliant welding across a variety of industrial and fabrication scenarios.



Selecting Electrodes Based on Your Base Metal and Joint Requirements

Evaluating Base Metal Composition

The foundation of effective welding begins with accurately identifying the base metal. Mild steel, characterized by low carbon content, responds well to standard E60XX electrodes, producing strong welds without excessive cracking. Low-alloy steels often require electrodes matched to their specific alloying elements to maintain mechanical integrity under stress. Stainless steel, particularly 300-series austenitic grades, demands corrosion-resistant electrodes like E308L or E316L to prevent weld discoloration and maintain chemical stability. Cast iron presents unique challenges due to its brittleness; nickel-based electrodes are preferred to reduce cracking. Aluminum, with its high thermal conductivity, necessitates specialized aluminum rods and attention to heat input.

Matching Electrode Tensile Strength

Ensuring the electrode’s tensile strength aligns with the base metal is critical for structural reliability. The first two digits of an AWS electrode code denote the minimum tensile strength of the deposited weld metal in thousands of psi. For instance, E6010 delivers 60,000 psi, while E7018 reaches 70,000 psi. Selecting a rod with insufficient strength increases the risk of weld failure, especially under dynamic or load-bearing conditions.

Balancing tensile strength with base metal properties prevents both under-strength welds and over-stressed joints. Low-hydrogen electrodes are particularly important for thick or high-stress materials to mitigate hydrogen-induced cracking.

Considering Joint Design and Fit-Up

The geometry of the joint directly influences electrode choice. Tight fit-ups and narrow root gaps benefit from deep-penetrating, “digging” electrodes such as E6010, which ensure full fusion in confined spaces. Wider root openings or thin sheet metal require electrodes with a softer arc, like E6013, to prevent burn-through and maintain surface finish. Beveling and groove welds demand precise alignment between electrode diameter, travel speed, and flux type to achieve uniform penetration and reduce slag entrapment. Fillet welds, common in T-joints, benefit from medium penetration rods with consistent deposition rates.



Interpreting AWS Codes and Electrode Types

Decoding the Full AWS Electrode Classification

AWS electrode codes provide precise guidance for welders on rod performance. The initial “E” denotes an arc welding electrode, followed by four digits specifying tensile strength, welding position, and coating with compatible polarity. For example, in E6010, “60” indicates a minimum tensile strength of 60,000 psi, the third digit “1” signifies suitability for all-position welding, and the fourth digit “0” identifies a cellulose-sodium coating compatible with DCEP. In E7018, the “70” reflects 70,000 psi tensile strength, the “1” confirms all-position use, and “8” indicates an iron-powder low-hydrogen coating suitable for AC or DCEP. This system allows welders to match rods accurately to base metal and joint conditions, minimizing weld defects.

Choosing Between Stick Electrode Coatings

Electrode coatings determine arc behavior, penetration, and weld quality. Cellulosic coatings, as seen in E6010 and E6011, create a deep-penetrating, fast-freezing arc ideal for root passes and contaminated surfaces. Rutile coatings, used in E6013, provide a smooth, low-spatter arc suitable for thin sheet metal and clean fabrication. Low-hydrogen iron powder coatings, featured in E7018, reduce hydrogen absorption, preventing cold cracking in thick or high-stress materials. Selecting the correct coating balances mechanical properties and welding efficiency.

All-Position vs Limited-Position Electrodes

The third digit of an AWS code defines positional capability, critical for overhead or vertical welding. A “1” allows welding in flat, horizontal, vertical, and overhead positions, enabling versatility for field applications. A “2” restricts electrodes to flat and horizontal work, often chosen for high-deposition applications where control in vertical or overhead positions is less critical. Selecting a rod without considering position can result in poor fusion or inconsistent slag behavior.

Matching Welding Power, Polarity, and Rod Diameter

AC vs DC Compatibility

Welding electrodes require proper power alignment to achieve stable arcs and optimal penetration. DCEP (Direct Current Electrode Positive) is preferred for deep penetration and “digging” applications, making it ideal for E6010 and low-hydrogen E7018 rods. DCEN (Direct Current Electrode Negative) produces a softer arc and is suitable for thin materials when shallow penetration is desired. AC power allows versatile operation for rods like E6011 and E6013, offering easier arc initiation on dirty or lightly oxidized surfaces. Misaligning electrode type with polarity or current can result in arc instability, excessive spatter, or incomplete fusion.

Selecting the Correct Rod Diameter

Rod diameter directly influences weld penetration and heat distribution. Thinner rods, such as 3/32 in (≈2.4 mm), are suitable for sheet metal and delicate structures, while thicker rods like 1/8 in (≈3.2 mm) or 5/32 in (≈4 mm) provide sufficient filler for heavy plates. Selecting a diameter larger than the base metal thickness risks burn-through, whereas a smaller rod may produce insufficient penetration. Amperage must correspond to rod diameter to maintain stable arcs and uniform deposition.

Optimizing Penetration Profile for Your Job

Electrode selection also governs the penetration profile. E6010 and E6011 deliver deep penetration, suitable for root passes and welding contaminated or rusted surfaces. E6013 produces a softer, moderate arc, ideal for thin sheet metal with minimal burn-through. Low-hydrogen E7018 offers controlled medium penetration, preventing hydrogen-induced cracking in structural welds. Techniques such as the whip-and-pause motion for deep penetration or a steady drag motion for low spatter help achieve consistent weld beads across different thicknesses and positions.



Preventing Weld Defects and Ensuring Quality

Common Welding Defects Linked to Electrode Choice

Weld defects often stem from improper electrode selection and technique. Porosity occurs when moisture or contaminants in the flux react during welding, trapping gas in the weld pool. Slag inclusion results from insufficient cleaning between passes or using an electrode with inappropriate flux coverage. Lack of fusion typically arises from low amperage, incorrect rod angle, or an electrode unable to penetrate fully. Burn-through happens when rod diameter or amperage exceeds the metal’s capacity, while cracking—especially in thick or high-carbon steel—is usually linked to hydrogen absorption or low ductility. Selecting rods like low-hydrogen E7018 for structural steel or fast-freeze E6010/E6011 for contaminated surfaces mitigates these risks.

Low-Hydrogen Electrode Handling and Storage

Low-hydrogen electrodes prevent hydrogen-induced cracking, making proper storage crucial. H4/H4R designations indicate moisture resistance and absorption limits. Rod ovens set at 250–300°F (121–149°C) maintain low diffusible hydrogen in E7018 and similar rods. Exposure to ambient moisture even for a few hours can increase hydrogen levels, risking cold cracking. Using rods beyond their open-air limit compromises weld integrity and requires redrying to restore usability.

Environmental and Service Condition Considerations

Weld quality is also influenced by ambient and service conditions. Rusty, oily, or painted metals require deep-penetrating electrodes such as E6010 or E6011 for effective root passes. High-stress or low-temperature applications benefit from low-hydrogen rods like E7018 to maintain ductility and prevent cracking. Fast-freeze electrodes are recommended for overhead welding, ensuring molten metal remains in place while minimizing spatter. Adjusting electrode type based on environmental factors ensures structural integrity and reduces rework.



Advanced Tips for Industrial Compliance and Efficiency

Adhering to Industry Standards

Compliance with AWS A5.1, A5.5, and structural welding code D1.1 ensures welding electrodes meet mechanical and chemical specifications for critical projects. Project-specific electrodes must align with WPS requirements to guarantee proper tensile strength, ductility, and impact toughness. Following these standards reduces inspection failures and ensures structural integrity, particularly in pressure vessels, pipelines, or load-bearing steel structures. Evaluating electrode certification documents before use confirms adherence to code and prevents non-compliance penalties.

Choosing Between Stick, Resistance, and TIG Electrodes

Different welding processes demand distinct electrode characteristics. Stick electrodes, like E6010 or E7018, provide consumable filler metal with flux for arc shielding, suitable for field fabrication and contaminated surfaces. Resistance welding uses copper or copper-alloy electrodes for spot welds, requiring high conductivity and precise pressure control. TIG electrodes employ non-consumable tungsten, producing clean, precise welds but needing filler rods for material addition. Selecting the wrong electrode type for the process compromises weld quality and increases rework.

Cost, Maintenance, and Procurement Considerations

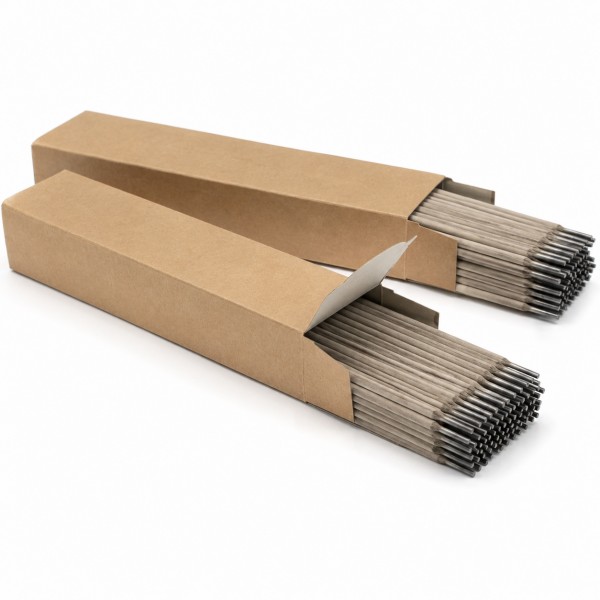

Long-term efficiency balances initial cost, maintenance, and storage requirements. Vacuum-packed H4R low-hydrogen rods preserve performance over extended shelf life, reducing rework due to moisture absorption. Procurement decisions should include compatibility with power source, storage environment, and code compliance.

Pre-Purchase Evaluation Checklist

Pro-Tip: Prioritize long-term reliability over minimal upfront cost to minimize downtime and maintain structural integrity.



Conclusion

Understanding how to choose welding electrodes ensures stronger, more reliable welds and reduces the risk of defects or rework. By matching electrodes to base metal, thickness, and joint conditions, interpreting AWS codes, and following best practices for polarity, flux, and storage, welders can achieve consistent results across different projects.

SHANDONG JULI WELDING Co., Ltd. provides a range of welding electrodes designed to meet these industrial requirements, helping operators maintain quality and efficiency. Proper selection and handling of their products support safer, more predictable welds while streamlining workflow and compliance with industry standards.



FAQ

Q: What factors should I consider when selecting welding electrodes?

A: Consider base metal type, thickness, joint design, electrode coating, polarity, and AWS classification to ensure proper penetration and weld quality.

Q: How do AWS electrode codes help in choosing the right rod?

A: AWS codes indicate tensile strength, welding position, coating type, and compatible polarity, guiding proper electrode selection for specific materials and applications.

Q: Which welding electrodes are best for thin sheet metal?

A: Electrodes with shallow penetration, such as E6013 with a rutile coating, provide a smooth arc and minimize burn-through on thin materials.

Q: How should low-hydrogen welding electrodes be stored?

A: Store low-hydrogen rods like E7018 in a heated rod oven or dry cabinet to prevent moisture absorption and reduce the risk of hydrogen-induced cracking.

Q: Can the same electrode be used on AC and DC machines?

A: Some rods, such as E6011, are compatible with both AC and DC, while others, like E6010, typically require DCEP for deep penetration.

Q: How do joint fit-up and gaps affect electrode choice?

A: Tight gaps or root passes require deep-penetrating electrodes, while wide openings or thin sections benefit from softer arcs to ensure consistent weld quality.
