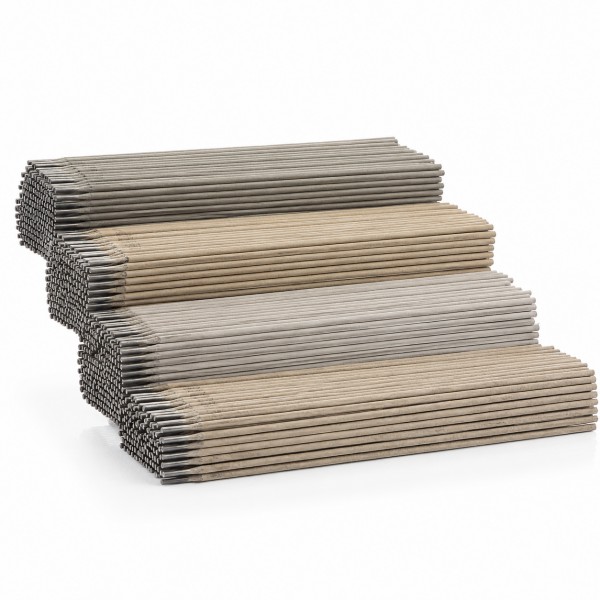

How Welding Electrodes Are Made

Introduction

Welding electrodes play a critical role in creating strong, reliable metal joints, yet their manufacturing and selection often remain opaque to many welders and engineers. Variations in core materials, flux coatings, and production processes can significantly influence arc stability, weld penetration, and overall performance. Understanding how welding electrodes are made provides insight into material properties, quality control measures, and handling requirements that directly affect field results.



Selecting the Right Electrode for Your Welding Needs

Matching Electrode Types to Base Metals

Choosing the correct welding electrode directly impacts weld quality, penetration, and long-term durability. Shielded Metal Arc Welding (SMAW) electrodes, often referred to as stick electrodes, are ideal for general-purpose welding on mild steel, providing moderate deposition rates and good arc stability. Cellulosic electrodes, such as E6010 or E6011, excel in pipeline or outdoor welding scenarios due to their deep penetration and self-shielding characteristics, which enable reliable performance on rusted or painted surfaces. Low-hydrogen electrodes, like E7018, are specifically engineered for structural steel, pressure vessels, and bridge applications, offering minimal diffusible hydrogen content to reduce the risk of cracking.

Electrode Comparison Table

Understanding Welding Positions and Electrode Suitability

Welding position affects arc behavior and deposition efficiency. Vertical and overhead welding demand electrodes with stable arcs and minimal spatter; E7018 rods are preferred due to their uniform flux coating and low hydrogen design. Flat and horizontal welding tolerate a broader range of electrodes, including E6013 rutile types, which provide smoother bead appearance and easier slag removal. Arc stability, flux burn-off rate, and penetration depth vary significantly with electrode choice and position.

Polarity and Power Compatibility

Electrode performance is closely tied to polarity selection. DCEP (Direct Current Electrode Positive) generally produces deeper penetration and a narrower bead, while DCEN (Direct Current Electrode Negative) offers shallower penetration suitable for thin metals. AC welding is typically paired with E6013 for light structural work, providing easy arc starting and consistent slag flow. Ensure your welding machine supports the electrode’s recommended current type and polarity to maintain bead integrity and avoid arc instability.

Checklist for Compatibility:

● Verify electrode type supports intended welding position.

● Confirm machine amperage falls within electrode range.

● Match polarity (AC/DC, DCEP/DCEN) to electrode specifications.

● Inspect for flux coating uniformity to ensure consistent arc start.



Core Materials and Coating Composition

Core Wire Specifications and Alloying Elements

The performance of welding electrodes begins with the quality of the core wire. Common materials include mild steel, stainless steel, and SWRY11 alloy wire, each selected based on tensile strength, yield strength, and elongation requirements. Typical tensile strength ranges from 400 to 600 MPa for mild steel rods, while low-alloy structural wires may reach up to 750 MPa. Proper wire drawing, straightening, and cutting ensure uniform diameter and concentricity, which directly affects coating adhesion and arc stability. Quality control tests, such as mechanical tensile testing and dimensional inspection, are essential to detect defects that could compromise welding performance.

Flux Coating Formulations and Binders

Flux coatings combine multiple components to stabilize the electric arc and protect the molten weld pool. Iron powder, cellulose, titanium dioxide, and alloying additives are blended with binders like sodium silicate or potassium silicate to form a homogenous paste. The coating thickness and uniformity influence spatter levels, bead appearance, and slag detachability. Low-hydrogen rods benefit from flux formulations that minimize moisture absorption and maintain consistent chemical composition.

Select flux compositions based on the desired weld outcome: rutile-rich formulations promote smoother beads and easy slag removal, whereas iron powder–heavy flux enhances deposition rate and penetration for structural welds.

Moisture Management and Hydrogen Control

Moisture content in the flux and core wire is a critical determinant of weld integrity. Low-hydrogen electrodes, such as E7018, should maintain moisture below 0.6% wt (H2O 120), while cellulosic electrodes may require higher moisture levels for optimal arc ignition. Diffusible hydrogen levels must be controlled to reduce cracking and porosity in welds. Proper storage in dry cabinets or baking ovens before use ensures consistent performance. Overlooked moisture can lead to hydrogen-induced cold cracking, particularly in thick or high-strength steels, and may require re-baking to restore electrode reliability.



Step-by-Step Manufacturing Process

Wire Drawing, Straightening, and Cutting

The manufacturing process begins with precision wire drawing, where thick metal rods are reduced to the desired core wire diameter through a series of dies. Dry drawing is commonly employed to enhance tensile strength and surface smoothness, using sodium- or calcium-based lubricants to minimize die friction and extend die life. After drawing, straightening machines align the wire, removing curvature and tension to ensure uniform concentricity, which is crucial for flux coating adhesion and consistent arc performance. High-speed guillotine or cutting blades then segment the wire into standardized lengths, typically 350–450 mm, preparing it for subsequent coating operations.

Dry and Wet Mixing of Flux Materials

Flux preparation combines precise dry powder blending with controlled binder addition. Components such as iron powder, cellulose, and titanium dioxide are measured according to formulation requirements. Dry mixing ensures uniform particle distribution, while wet mixing with sodium or potassium silicate binders forms a paste suitable for extrusion. Cellulosic electrodes demand careful moisture control to facilitate arc ignition, whereas rutile-rich fluxes emphasize smooth bead appearance and slag detachability. Extended mixing times or improper sequence can lead to flux segregation, resulting in inconsistent coating and variable weld penetration.

Extrusion, Coating, and Baking

Electrode coating is performed using specialized extruders, which may be horizontal, vertical, screw, or hydraulic types. The core wire passes through a precisely aligned die while the flux paste is forced around it under controlled pressure. Coating thickness is monitored to match electrode specifications, typically ranging from 0.8 to 1.5 mm depending on rod type. After extrusion, electrodes are dried at moderate temperatures to remove surface moisture, then baked in industrial ovens at higher temperatures to activate chemical binders and ensure full flux adhesion. Uniform heating prevents inner-layer underbaking, which can otherwise result in spalling or arc instability.

Centering, Brushing, Printing, and Packaging

Post-baking, electrodes undergo concentricity verification, tip and nip geometry inspection, and brushing to remove excess flux. Automated or semi-automated printing units apply specification codes, batch numbers, and manufacturer logos for traceability. Finally, electrodes are packed, often under vacuum or in moisture-resistant containers, depending on type; cellulosic rods may require metal cans to prevent ambient humidity ingress.

Checklist for QC Before Shipment:

● Concentricity within ±0.1 mm

● Coating thickness uniformity confirmed

● Flux adhesion integrity

● Batch coding accurate and legible

● Packaging moisture-proof and compliant with storage requirements



Quality Assurance and Performance Testing

Mechanical and Chemical Testing

Every batch of welding electrodes undergoes rigorous mechanical and chemical evaluation to ensure consistency and performance. Mechanical tests include tensile strength, yield strength, elongation, Charpy impact, hardness, and bend assessments, confirming that the core wire meets application-specific requirements. Chemical analysis using XRF, XRD, ICP, carbon/sulfur, and oxygen/nitrogen measurements verifies elemental composition, ensuring alloy integrity and flux compatibility. Testing deviations can indicate wire contamination or improper alloying, which may compromise weld strength or arc stability.

Welding Performance and Defect Prevention

Welding electrodes are also evaluated for operational performance, focusing on arc stability, slag detachability, spatter levels, and weld porosity. Electrodes with uneven flux coating or improper moisture content often produce undercut, porosity, or inconsistent penetration. Controlled testing identifies these issues before shipment.

Table: Common Welding Defects and Causes

Compliance with International Standards

Standard compliance under AWS A5.1, ISO 2560, and ASME SFA-5.1 is critical for ensuring reliability in structural and industrial applications. Hydrogen content classifications (H5/H10/H15) are verified to prevent cold cracking, particularly in low-hydrogen electrodes. Labeling and traceability according to these standards provide welders and procurement teams with confidence in electrode quality, facilitating both field use and regulatory acceptance. Non-compliant rods risk weld defects, rework, and safety failures in critical projects.



Practical Tips for Storage, Handling, and Cost Efficiency

Proper Storage to Prevent Moisture and Hydrogen Issues

Low-hydrogen welding electrodes require meticulous storage to maintain performance. Moisture ingress can elevate diffusible hydrogen levels, increasing the risk of cold cracking. Store rods in sealed, moisture-resistant containers, ideally in temperature-controlled cabinets or ovens. Re-baking at manufacturer-recommended temperatures restores low-hydrogen properties after exposure to high humidity. Coastal and tropical environments necessitate additional precautions, including dehumidifiers or insulated storage to prevent flux degradation.

Pro-Tip: Track batch moisture levels and perform pre-use baking for all E7018 electrodes stored over two weeks in humid conditions.

Cost vs. Quality: Making Economical Choices

Selecting electrodes should balance material cost against deposition efficiency and potential rework. High-quality rods may have a higher purchase price but often reduce spatter, improve slag detachability, and minimize weld defects, saving labor and post-weld corrections. Consider packaging durability, transportation conditions, and labor requirements when calculating total project cost.

Checklist for Calculating Total Welding Cost per Project:

● Electrode unit cost and quantity

● Deposition efficiency per electrode type

● Labor hours for weld preparation and post-weld cleanup

● Rework rate and scrap percentage

● Storage and handling overhead

Safety Considerations During Use

Welding generates fumes containing manganese, hexavalent chromium, and other particulates, posing occupational hazards. Ensure proper ventilation, local fume extraction, and personal protective equipment (PPE) such as respirators and eye protection. Follow OSHA and NIOSH guidelines to monitor exposure levels and enforce safe practices. Proper handling also reduces the risk of coating damage and moisture absorption, preserving electrode reliability in critical welds.



Conclusion

Understanding the materials, flux compositions, and manufacturing steps behind welding electrodes is essential for achieving consistent, reliable welds across different applications. Careful attention to core wire specifications, coating uniformity, and proper storage can prevent common issues such as porosity, cracking, or arc instability.

SHANDONG JULI WELDING Co., Ltd. provides welding electrodes designed with controlled flux formulations and rigorous quality checks, helping welders maintain performance consistency, reduce rework, and optimize efficiency. Proper selection, handling, and adherence to recommended standards ensure that these electrodes deliver dependable results in both industrial and field environments.



FAQ

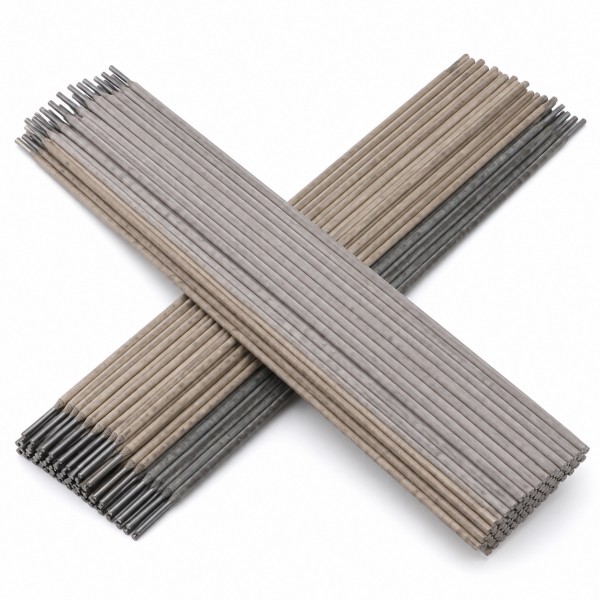

Q: What are welding electrodes made of?

A: Welding electrodes consist of a metal core wire, often mild steel or alloy steel, coated with flux materials such as cellulose, iron powder, titanium dioxide, and binders to stabilize the arc.

Q: How is the flux coating applied to electrodes?

A: The flux paste is extruded or pressed evenly around the core wire, then dried and baked to ensure adhesion, proper thickness, and consistent arc performance during welding.

Q: Why is proper storage important for welding electrodes?

A: Electrodes, especially low-hydrogen types, must be kept dry and temperature-controlled to prevent moisture absorption, which can increase hydrogen content and cause cracking or porosity.

Q: How do welding electrodes affect arc stability and weld quality?

A: Electrode composition and coating uniformity influence arc ignition, spatter levels, slag detachability, and penetration, directly impacting weld consistency and strength.

Q: What standards ensure the quality of welding electrodes?

A: Welding electrodes are tested against industry standards such as AWS A5.1, ISO 2560, and ASME SFA-5.1, covering mechanical properties, hydrogen content, and labeling for reliable performance.

Q: Can all welding electrodes be used in any welding position?

A: No; some electrodes like E7018 suit all positions, while others, including cellulosic E6010, are optimized for vertical or overhead welding to maintain arc stability and penetration.
