How Are Welding Electrodes Classified?

Welding electrodes are classified based on coating type, current compatibility, chemical composition, welding position, and international standards. These classifications make it easier to identify how welding electrodes perform in different welding processes, materials, and service conditions. For industrial welding, correct classification is important because welding electrodes directly affect arc stability, weld strength, penetration, slag formation, and long-term joint reliability.

Key Takeaways

● Welding electrodes are classified by coating, current, composition, and standards.

● AWS classification is widely used for identifying welding electrodes.

● Welding electrodes can be consumable or non-consumable.

● Coating type affects arc stability, penetration, slag, and hydrogen control.

● Classification supports better welding electrodes selection for different applications.

● E6013, E7018, and E6010 are common classified welding electrodes.

What Are Welding Electrodes?

Basic Definition of Welding Electrodes

Welding electrodes are materials used to conduct current and create an electric arc between the electrode and the base metal. In many welding processes, welding electrodes also melt and become part of the weld metal. Their composition and coating influence the final weld quality, mechanical strength, and working performance.

In shielded metal arc welding, welding electrodes are usually covered with flux coating. The coating produces shielding gas and slag during welding to protect the molten weld pool. This makes welding electrodes both electrical conductors and metallurgical contributors to the weld.

Role of Welding Electrodes in Welding

Welding electrodes affect arc behavior, penetration depth, weld bead shape, and slag removal. Different welding electrodes are designed for different materials, current types, and welding positions. A welding electrode used for light fabrication may not be suitable for pressure vessels, bridges, or heavy machinery.

The correct welding electrodes can improve welding efficiency and reduce defects such as porosity, cracking, and slag inclusion. Incorrect welding electrodes may lead to weak joints or unstable arc performance. This is why classification is essential for industrial welding work.

Welding Electrodes vs Welding Rods

The terms welding electrodes and welding rods are often used together, but they are not always identical. Welding electrodes are a broader category because they include both consumable and non-consumable types. Welding rods usually refer to filler materials or stick electrodes used in manual welding.

In stick welding, welding rods are also welding electrodes because they conduct current and provide filler metal. In TIG welding, tungsten welding electrodes create the arc, while filler rods may be added separately. Understanding this distinction makes welding electrode classification clearer.

Main Classification of Welding Electrodes

Consumable and Non-Consumable Welding Electrodes

Welding electrodes are first classified as consumable or non-consumable. Consumable welding electrodes melt during welding and become part of the weld metal. Stick electrodes, flux-cored wires, and many metal arc welding electrodes belong to this category.

Non-consumable welding electrodes do not normally melt into the weld pool. Tungsten electrodes used in TIG welding are the most common example. These welding electrodes create a stable arc while separate filler metal may be added when required.

Classification by Coating Type

Covered welding electrodes are often classified by coating type, such as cellulosic, rutile, basic, or iron powder coatings. Cellulosic welding electrodes provide deep penetration and are often used for pipeline welding. Rutile welding electrodes offer smooth arc performance and easy slag removal.

Basic low-hydrogen welding electrodes are used where crack resistance and mechanical strength are important. Iron powder welding electrodes improve deposition efficiency and are useful in production welding. Coating type is one of the most important classification methods because it affects both welding behavior and final weld quality.

Classification by Current Type

Welding electrodes can also be classified by current compatibility. Some welding electrodes are designed for DC current, while others can work with AC or DC. Current type affects arc stability, penetration, spatter level, and operator control.

For example, E6010 welding electrodes are commonly used with DC positive current. E6011 welding electrodes can work with AC or DC, making them useful for field repair. E7018 welding electrodes are commonly available for AC and DC applications, depending on product specification.

Classification by Application

Welding electrodes are also classified by application, including structural steel, stainless steel, pipeline, hardfacing, cast iron, and maintenance welding. Structural welding electrodes require reliable strength and toughness. Stainless steel welding electrodes must provide corrosion resistance and alloy compatibility.

Pipeline welding electrodes often require deep penetration and strong arc force. Hardfacing welding electrodes are designed to create wear-resistant surfaces. Application-based classification connects welding electrodes directly with real industrial requirements.

AWS Classification of Welding Electrodes

Understanding the AWS System

The American Welding Society classification system is one of the most widely used systems for welding electrodes. It uses letters and numbers to describe tensile strength, welding position, coating type, and current suitability. Codes such as E6013, E7018, and E6010 are common examples.

In AWS classification, the letter “E” stands for electrode. The first two digits usually indicate tensile strength in thousands of pounds per square inch. The next digits describe position, coating type, and current compatibility.

Breakdown of Electrode Numbers

AWS numbers give compact technical information about welding electrodes. For example, in E7018 welding electrodes, “70” means about 70,000 psi tensile strength, “1” means all-position welding, and “8” indicates low-hydrogen iron powder coating. This makes the classification practical for quick selection.

E6013 welding electrodes have 60,000 psi tensile strength, all-position usability, and rutile-based coating. E6010 welding electrodes have deep penetration and cellulose sodium coating. Each classification reflects different welding behavior and application range.

AWS Welding Electrodes Classification Chart

ISO Classification of Welding Electrodes

Difference Between AWS and ISO Classification

ISO classification also identifies welding electrodes by strength, impact toughness, coating type, recovery rate, and welding position. Compared with AWS, ISO codes may provide more detailed performance information. This system is widely used in international markets, especially where European or global standards are required.

AWS classification is often simpler and easier to recognize in general industrial use. ISO classification can be more detailed when specific mechanical properties are needed. Both systems are useful for identifying welding electrodes, but the format and technical emphasis are different.

When ISO Classification Is Used

ISO classification is often used in projects that follow European standards or international engineering specifications. It may be required in shipbuilding, pressure equipment, construction, and infrastructure projects. For export welding electrodes, ISO classification can support international product identification.

Manufacturers and buyers may use both AWS and ISO designations on product documents. This makes welding electrodes easier to compare across different markets. When working on international projects, confirming the required standard before purchasing welding electrodes is important.

Why Standards Matter in Welding Electrode Selection

Standards create consistency in welding electrodes classification. Without standard classification, it would be difficult to compare strength, coating type, current compatibility, and welding position. Standard codes reduce confusion during procurement, production, and inspection.

For industrial welding, standards also support quality control and traceability. Welding procedures often specify welding electrodes by classification rather than only by product name. This ensures that selected welding electrodes match engineering and inspection requirements.

Types of Welding Electrodes Based on Composition

Carbon Steel Welding Electrodes

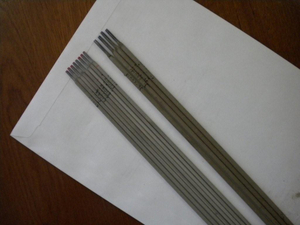

Carbon steel welding electrodes are used for mild steel, carbon steel structures, machinery parts, and general fabrication. Common examples include E6013, E6011, E6010, and E7018 welding electrodes. These welding electrodes are widely used because carbon steel remains one of the most common industrial materials.

Different carbon steel welding electrodes provide different arc characteristics and mechanical properties. E6013 welding electrodes are suitable for general fabrication, while E7018 welding electrodes are selected for stronger structural welds. The final choice depends on strength, position, thickness, and service condition.

Stainless Steel Welding Electrodes

Stainless steel welding electrodes are classified by alloy composition and corrosion resistance. They are designed to weld stainless steel grades used in chemical equipment, food machinery, piping, and corrosion-resistant structures. These welding electrodes must match the base metal to maintain corrosion resistance and weld integrity.

Stainless steel welding electrodes often contain chromium, nickel, and other alloying elements. Incorrect selection may reduce corrosion resistance or cause cracking. For stainless steel fabrication, composition-based classification is especially important.

Alloy and Special Welding Electrodes

Alloy welding electrodes are used when welds require special strength, toughness, heat resistance, or wear resistance. These welding electrodes may contain elements such as molybdenum, nickel, chromium, or manganese. They are common in high-strength steel, heat-resistant steel, and special industrial applications.

Special welding electrodes also include hardfacing electrodes and cast iron electrodes. Hardfacing welding electrodes create wear-resistant surfaces on tools, rollers, and machinery parts. Cast iron welding electrodes are designed to handle the cracking sensitivity of cast iron materials.

Composition-Based Classification Chart

How to Choose Welding Electrodes Based on Classification

Based on Base Metal

The base metal should be the first factor when selecting welding electrodes. Mild steel can often use E6013, E6011, E6010, or E7018 welding electrodes depending on the application. Stainless steel requires stainless welding electrodes that match the alloy grade and corrosion requirements.

High-strength steel may require low-hydrogen or low-alloy welding electrodes. Cast iron needs special welding electrodes that reduce cracking risk. Matching welding electrodes with base metal composition protects weld quality and service performance.

Based on Strength and Welding Position

Strength requirements should match the design and service condition. E6013 welding electrodes may be suitable for light-duty work, while E7018 welding electrodes are commonly selected for structural applications. Tensile strength is an important part of classification, but it should not be the only selection factor.

Welding position is also important because not all welding electrodes perform well in every position. All-position welding electrodes are needed for complex structures with vertical or overhead welds. Flat-position welding electrodes may provide higher deposition rates but less flexibility.

Based on Environment and Service Condition

The working environment affects welding electrodes selection. Outdoor welding may require welding electrodes with stronger arc force and better tolerance to surface conditions. Critical structures may require low-hydrogen welding electrodes to reduce cracking risk.

Corrosive environments require stainless steel or alloy welding electrodes. High-wear surfaces may require hardfacing welding electrodes. Classification allows welding electrodes to be matched with service conditions instead of being selected only by price or availability.

Choosing a Reliable Welding Electrodes Manufacturer

Product Consistency and Classification Accuracy

A reliable manufacturer should provide welding electrodes with accurate classification, stable coating quality, and consistent mechanical properties. Industrial users depend on welding electrodes that perform the same across different batches. Inconsistent welding electrodes may cause unstable arc behavior, poor weld quality, and inspection problems.

Classification accuracy is also important for procurement and welding procedure compliance. Product labels, certificates, and packaging should clearly identify welding electrodes by standard and specification. This reduces mistakes during storage, distribution, and production.

Product Range and Technical Capability

A capable manufacturer should supply different welding electrodes for carbon steel, stainless steel, low-hydrogen welding, hardfacing, and special applications. A wider product range supports different industries and welding procedures. Technical capability is important because welding electrodes must match materials, positions, currents, and performance requirements.

Industrial buyers often require more than one type of welding material. Welding electrodes, welding wire, flux-cored wire, and stainless steel welding materials may be used together in one production system. A complete product range supports stable procurement and easier material management.

Supply Stability for Industrial Applications

Large projects require stable supply of welding electrodes with consistent specifications. Delivery stability affects production schedules, warehouse planning, and project completion. For distributors and industrial factories, welding electrodes must be available in reliable quantities and packaging.

Stable supply also supports long-term quality control. When welding electrodes change frequently, welding performance may become less predictable. A dependable manufacturer reduces supply risk and supports consistent welding results.

Conclusion

Welding electrodes are classified by coating type, current compatibility, composition, application, and standards such as AWS and ISO. These classifications explain how welding electrodes perform, where they can be used, and what weld properties they can provide. For industrial welding, proper classification improves selection accuracy, welding quality, and production reliability. SHANDONG JULI WELDING CO., LTD supplies welding materials including welding electrodes, welding wire, flux-cored wire, stainless steel welding materials, and related welding solutions, supporting different industrial welding applications with stable product supply and consistent material performance.

FAQ

How are welding electrodes classified?

Welding electrodes are classified by coating type, current compatibility, chemical composition, welding position, application, and standards such as AWS or ISO. These classifications describe how welding electrodes perform during welding. They also support correct selection for different materials and working conditions.

What is AWS classification for welding electrodes?

AWS classification uses letters and numbers to describe welding electrodes. In codes such as E7018, “E” means electrode, “70” shows tensile strength, “1” shows welding position, and “8” indicates coating type and current compatibility. This system is widely used for stick welding electrodes.

What is the difference between consumable and non-consumable welding electrodes?

Consumable welding electrodes melt during welding and become part of the weld metal. Non-consumable welding electrodes, such as tungsten electrodes, create the arc but do not normally melt into the weld pool. The correct type depends on the welding process and material requirement.

What are the common types of welding electrodes?

Common welding electrodes include E6013, E7018, E6010, E6011, stainless steel electrodes, low-alloy electrodes, cast iron electrodes, hardfacing electrodes, and tungsten electrodes. Each type has different performance characteristics. Selection should depend on base metal, strength, position, and service environment.

How do I choose the right welding electrodes?

The right welding electrodes should match the base metal, welding position, current type, strength requirement, and service condition. E6013 welding electrodes are often used for general fabrication, while E7018 welding electrodes are preferred for structural and low-hydrogen welding. Critical projects should follow welding procedure specifications and required standards.
