What Are Electrodes in Welding

Introduction

Welding electrodes are at the heart of creating strong, reliable metal joints, yet choosing the right type can be confusing for both beginners and seasoned welders. Differences in core material, flux coating, and current compatibility can dramatically affect weld penetration, arc stability, and overall quality. Understanding electrode codes, matching rods to base metals, and managing storage conditions are essential for achieving consistent results.



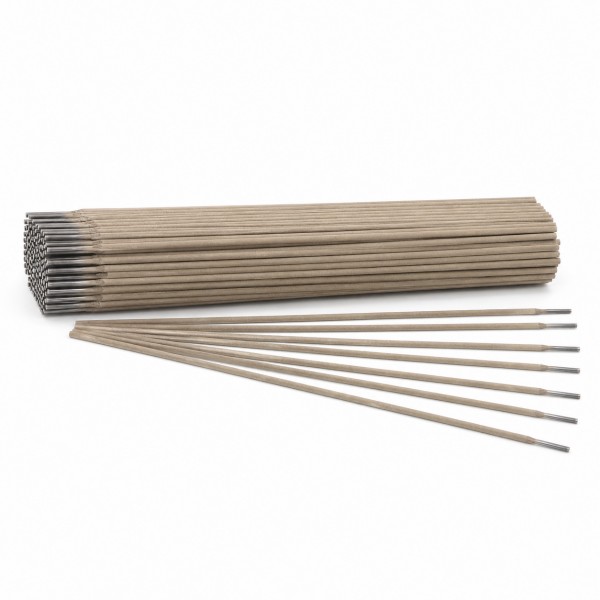

Core Types of Welding Electrodes and How They Work

Consumable vs Non-Consumable Electrodes

Welding electrodes are divided into consumable and non-consumable types, each serving distinct functions in metal joining. Consumable electrodes, used in processes such as SMAW, MIG, and FCAW, melt along with the weld, providing filler material directly into the joint. Non-consumable electrodes, primarily tungsten electrodes in TIG welding, maintain the arc without melting, requiring a separate filler rod for fusion. Choosing the wrong consumable electrode can compromise penetration depth and arc stability, leading to uneven weld beads or excessive spatter.

Pro-Tip: Always match the consumable electrode type to the base metal and joint configuration. For deep penetration, use DCEN with fast-freeze rods like E6010; for out-of-position welding, low-hydrogen electrodes such as E7018 offer greater arc control and reduced porosity.

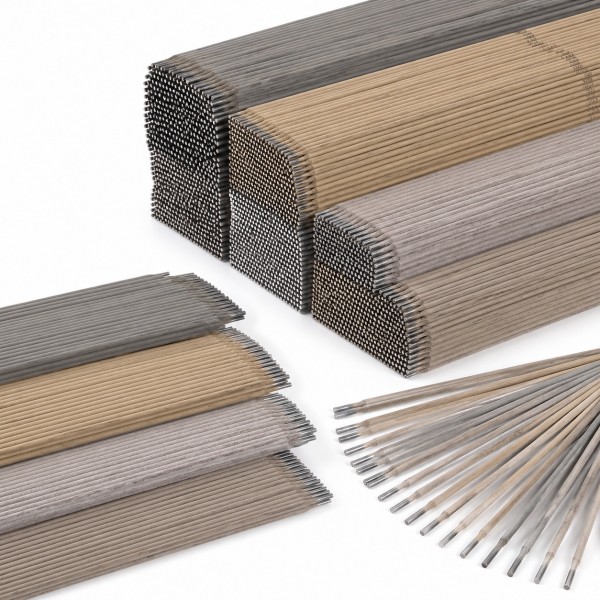

Electrode Materials and Core Compositions

Electrodes are engineered from various core metals to match the chemical and mechanical properties of the base material. Mild steel electrodes are standard for structural applications, while low-alloy steel rods offer enhanced tensile strength and hardness. Stainless steel electrodes, such as E308L, are essential for corrosion-resistant welds, whereas aluminum and nickel alloy rods provide compatibility for non-ferrous metals. Tungsten electrodes, color-coded by alloying element—green for pure tungsten, yellow for 1% thoriated, and red for 2% thoriated—deliver high current capacity and stable arc initiation in TIG applications.

Flux Coating Functions

The outer flux coating of consumable electrodes performs multiple roles that extend beyond simple protection. It generates a shielding gas to prevent oxidation, forms a slag layer controlling cooling rates and weld shape, and introduces ionized particles that stabilize the arc. Different flux formulations suit specific welding scenarios:

How Electrodes Create a Weld

Welding begins when the electrode forms an electric arc with the workpiece, generating temperatures exceeding 6,500°F (3,600°C) at the tip. This heat melts both the electrode and the base metal, forming a molten weld pool. As the electrode deposits filler material, the molten metal solidifies under the protective gas and slag shield, creating a cohesive, high-strength joint. Arc length, travel speed, and electrode angle must be precisely controlled to avoid defects such as undercut or lack of fusion.

A schematic illustration can show: arc formation → molten metal pool → slag covering → final solidified weld. Correct manipulation ensures uniform bead shape, optimal penetration, and minimal spatter, even in challenging positions.



Reading Welding Electrode Codes and Specifications

Decoding AWS Numbers

Welding electrodes are labeled with AWS classification numbers that encode critical information for material compatibility and welding performance. The first two digits indicate tensile strength, expressed in thousands of pounds per square inch; for example, E6010 corresponds to 60,000 psi, while E7018 represents 70,000 psi. The subsequent digit specifies the welding position suitability, where “1” indicates all-position use, “2” flat and horizontal only, and “4” for flat, horizontal, vertical-down, and overhead positions. The final digit denotes the flux coating type and recommended current/polarity. Understanding this coding allows welders to select electrodes that match base metal characteristics and project requirements without trial-and-error.

Understanding Coating Thickness and Deposition Rate

Electrode coatings influence arc stability, weld penetration, and spatter levels. Light coatings (coating factor ~1.25) produce a thinner slag and moderate shielding, ideal for indoor or thin material work. Medium coatings (~1.45) balance protection and ease of slag removal, suitable for versatile environments. Heavy coatings (1.6–2.2) provide maximum shielding and high deposition rates, commonly used for outdoor construction or structural welding.

Current and Polarity Selection

The welding current directly affects heat distribution and penetration. DCEN (Direct Current Electrode Negative) concentrates ~2/3 of arc heat on the workpiece, providing deep penetration and slower electrode melt-off. DCEP (Direct Current Electrode Positive) shifts heat toward the electrode, accelerating melt-off for faster deposition but producing shallower penetration. AC alternates polarity to balance heat distribution, reducing arc blow in thick sections or confined spaces.



Selecting the Right Electrode for Your Project

Base Metal Considerations

Choosing the correct welding electrode begins with the base metal. Mild steel typically pairs with E6013 or E7018 electrodes for balanced penetration and smooth bead formation. Stainless steel requires low-carbon rods such as E308L or E316L to prevent carbide precipitation and corrosion. Aluminum welding demands specialized filler rods like ER4043 to match thermal expansion characteristics and minimize porosity. Cast iron benefits from nickel-based electrodes, which reduce cracking risks during cooling. Selecting electrodes compatible with the base metal ensures proper fusion, mechanical strength, and long-term joint reliability.

Welding Position and Joint Type

Electrode selection must also consider welding positions and joint types. Flat (1G), horizontal (2G), vertical-up/down (3G/3F), and overhead (4G/4F) applications place different demands on molten metal control. Pipe welds (5G/6G) require electrodes that maintain penetration while accommodating rotation constraints. Pro-Tip: Out-of-position welds benefit from fast-freezing, low-hydrogen electrodes like E7018, which stabilize the arc and reduce sagging or spatter during vertical or overhead operations.

Environmental and Equipment Factors

Environmental conditions and machine compatibility influence electrode performance. High humidity or low temperatures can cause moisture absorption, increasing the risk of hydrogen-induced cracking, particularly in low-hydrogen electrodes. Outdoor welding may require heavier flux coatings to shield against wind or contamination. Compatibility with AC, DCEN, or DCEP power sources ensures proper melt-off rates and arc control.

Checklist – Project Environment Assessment Before Electrode Selection:

● Determine indoor or outdoor conditions

● Assess ambient temperature and humidity

● Verify welding machine current type and capacity

● Select flux coating weight and electrode storage method accordingly

Strength and Performance Requirements

Structural or critical joints demand electrodes that deliver maximum strength and controlled deposition. Low-hydrogen electrodes offer enhanced ductility and reduced diffusible hydrogen, minimizing cracking risk in thick plates or cyclic-stress applications. Deposition rate and arc stability influence efficiency, particularly for large-scale projects. Using iron-powder electrodes like E7024 can accelerate material deposition in flat or horizontal welds, but careful control of travel speed is essential to avoid undercut or voids.



Common Welding Electrode Issues and Best Practices

Defects Caused by Electrodes

Welding electrodes can produce a range of defects if not handled or selected properly. Porosity often occurs when electrodes absorb moisture or the base metal is contaminated. Slag inclusion results from inadequate electrode angle or insufficient cleaning between passes. Undercut happens when travel speed is too high or current exceeds recommended limits. Cracks and lack of fusion are typically linked to improper electrode choice or uneven heat distribution.

Storage and Handling Guidelines

Electrodes require strict moisture control to maintain quality. Low-hydrogen rods, particularly E7018, must be stored in rod ovens or sealed containers to prevent hydrogen absorption, which can lead to porosity. R-suffix electrodes provide additional moisture resistance but still benefit from careful handling.

Pro-Tip: Re-baking low-hydrogen electrodes at 250–260°C for two hours can restore performance if slight moisture exposure occurs.

Maintenance and Longevity Tips

Daily electrode maintenance improves weld consistency and longevity. Inspect rods for coating cracks, bent cores, or exposed metal before use. Avoid bending electrodes excessively, as this can fracture the flux and compromise arc stability. Shelf life varies by type, but properly stored electrodes can maintain performance for several months.

Checklist – Daily Electrode Handling Routine:

● Verify electrode packaging is intact and dry

● Inspect coating for cracks or flaking

● Store rods in temperature-controlled or rod oven environment

● Re-bake low-hydrogen electrodes if moisture is suspected

Adhering to these best practices ensures that deposition rate, arc stability, and overall weld quality remain optimal, reducing defects and material waste.



Practical Tips and Expert Recommendations

Choosing Electrodes for Cost vs Quality

Selecting welding electrodes involves balancing deposition efficiency, spatter reduction, labor cost, and downtime. High-quality rods, such as low-hydrogen E7018, often reduce defects and rework, saving time despite higher upfront cost. Cheaper rods may appear economical but can increase total project expenses due to additional cleaning, slower travel speeds, and higher spatter removal.

High-Authority References

Adhering to industry standards ensures consistency and reliability. Key references include AWS classification standards, ISO 2560 for covered electrodes, ASME Section IX for welding procedure qualifications, and project-specific WPS/PQR documentation. These authoritative sources guide proper electrode selection, current, and polarity choices for various materials and positions.

Quick Reference Guide

For beginners, a simplified chart aids rapid electrode selection:

This quick guide helps ensure proper electrode choice, matching material type, current, and welding position while maintaining optimal arc stability and deposition efficiency.



Conclusion

Understanding welding electrodes and their proper use is essential for producing strong, reliable welds while minimizing defects and rework. Careful selection based on base metal, joint position, flux coating, and current ensures consistent arc stability and optimal deposition rate. Proper storage, inspection, and handling further preserve electrode performance and extend usability.

SHANDONG JULI WELDING Co., Ltd. provides a range of welding electrodes designed to meet these practical requirements. Their products support precise control over penetration, spatter reduction, and deposition efficiency, helping welders maintain consistent quality, reduce downtime, and achieve better results across diverse materials and welding applications.



FAQ

Q: What are welding electrodes used for?

A: Welding electrodes conduct electric current to create an arc that melts the base metal and, in consumable types, deposits filler material to join metals securely.

Q: How do I read the numbers on welding electrodes?

A: Electrode numbers indicate tensile strength, welding position, and flux type. For example, E7018 has 70,000 psi strength, all-position use, and a low-hydrogen flux coating.

Q: What is the difference between consumable and non-consumable electrodes?

A: Consumable electrodes melt during welding to become part of the weld, while non-consumable electrodes, like tungsten, maintain the arc and require separate filler rods.

Q: How should welding electrodes be stored?

A: Electrodes should be kept dry, ideally in rod ovens or sealed containers. Low-hydrogen rods require controlled temperature to prevent moisture absorption and porosity.

Q: Which welding electrode is best for stainless steel?

A: Stainless steel welding typically uses low-carbon electrodes such as E308L or E316L to minimize corrosion and ensure compatibility with the base metal.

Q: Can the wrong electrode affect weld quality?

A: Yes, using incorrect welding electrodes can lead to poor penetration, spatter, porosity, or weak joints, reducing overall weld strength and reliability.
