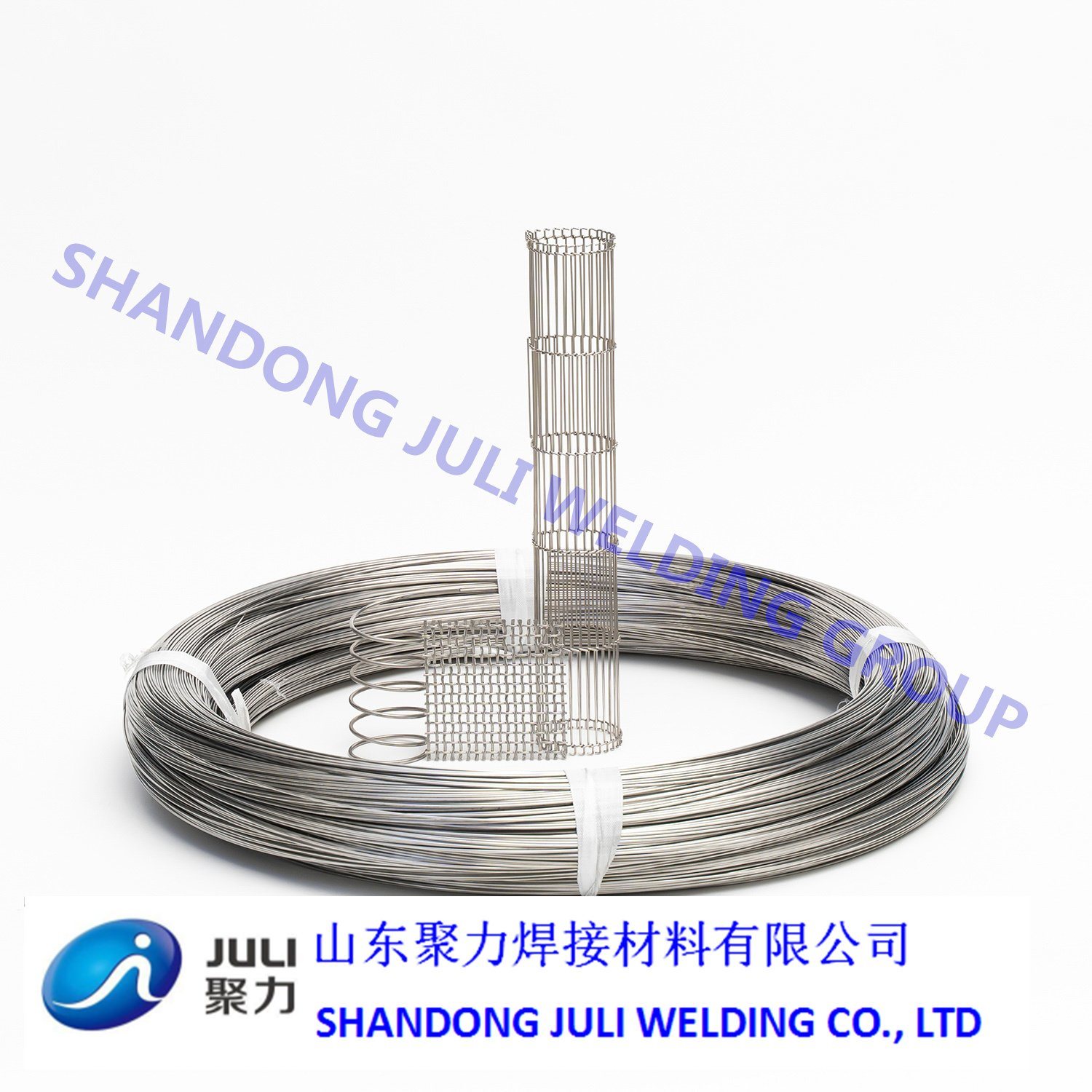

Product Application Applications:Binding wire,flexible hose and fine wire
Supplying good elongation genratrix for other manufactures in the lines of filament drawing,producing fine spring wire,acupuncture wire and pressed wires,etc.
For the lower reaches of the middle bus companies for the production and fine,fine spring,acu-puncture or pressure line before rolling the opposite side.
Characteristics:Bright smooth surface,good for redrawing.
List of ingredients of Stainless Steel Wire | MARKS | Chemical compsition% |
| TYPE | C | Si | Mn | P | S | Ni | Cr | Mo | Cu | Others |
| 201 | 0.15 | 1.00 | 5.50-7.50 | 0.05 | 0.03 | 3.50-5.50 | 16.00-18.00 | - | - | 0.05-0.25 |
| 130M/202 | 0.15 | 1.00 | 7.50-10.0 | 0.05 | 0.03 | 4.00-6.00 | 17.00-19.00 | - | - | 0.05-0.25 |
| 301 | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 6.00-8.00 | 16.00-18.00 | - | - | N 0.10 |
| 302 | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-10.00 | 17.00-19.00 | - | - | N 0.10 |
| 303 | 0.15 | 1.00 | 2.00 | 0.20 | ≥0.15 | 8.00-10.00 | 17.00-19.00 | ≤0.60 | - | |
| 303Cu | 0.15 | 1.00 | 2.00 | 0.20 | ≥0.15 | 8.00-10.00 | 17.00-19.00 | ≤0.60 | 1.50-3.50 | |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 8.0-10.0 | 18.0-20.0 | | | |
| 304H | 0.06-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 8.0-10.0 | 18.0-20.0 | | | |
| 304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 9.00-13.00 | 18.00-20.00 | | | |
| 314 | 0.25 | 1.50-3.00 | 2.00 | 0.04 | 0.03 | 19.00-22.00 | 23.00-26.00 | - | - | |
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 10.0-14.0 | 16.0-18.0 | | | |
| 316L | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | | |
| 321 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 9.0-13.0 | 17.0-19.0 | | | Ti≤5*C% |
| 347 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 9.0-12.0 | 17.0-19.0 | | | Nb:10C-1.10 |
| 430 | 0.12 | 1.00 | 1.00 | 0.04 | 0.03 | - | 16.00-18.00 | - | - | |
| MARK | Physicochemical Indexes | Diameter (mm) |
| TYPE | Tensile Strength (Mpa) | Elongation (%) |
| 316 | 600-800 | 50-60% | 0.10-15.00 |
| 316L | 700-950 | 30-50% | 0.10-0.60 |
| 304 | 600-800 | 45-55% | 0.10-15.00 |
| 304H | 700-1000 | 30-50% | 0.10-0.60 |
| 321 | 600-800 | 50-60% | 0.10-15.00 |
| 347 | 600-800 | 50-60% | 0.10-15.00 |
| 430 | 500-750 | 20-30% | 0.20-16.00 |
Production Line Manufacyure plant
Stainless steel ruturn production line Stainless steel production line Stainless steel production line Stainless steel production line Stainless steel products warehouse Pcakaging & Logistics
Testing Lab Efficient and advanced testing means,the best guarantee of good quality.
Our company has complete testing equipment as well as high-qualified and professional inspector.We make strict test for all the raw materials,semi-finished products and finished products,which provide a reliable technology guarantee for high quality products.
Eifficient and advanced testing means,the best guarantee of good quality.
Our company has complete testing equipment as well as high-qualified and profession inspector.We make strict test for all the raw materials,semi-finished products and finished products,which provide a reliable technology guarantee for high quality products. PROVINCIAL KEY CHEMICAL LABORATORY
R&D center The R&D center of the company has been approved by the Science and Technology Department of Shandong Province as the provincial automatic welding engineering technology research center. Enterprise Technology Center is rated as provincial enterprise Technology Center by Shandong Provincial Economic and Information Technology Commission.The company undertook the research and development of the national key new product - welding soft wire.The company has a total of more than 200 varieties of products, and according to the special requirements of users to complete the development, research, production tasks. Qualification&Certificate Our company have been passed the ISO9001:2000 quality system standard and its major products are approved by CCS,ABS,DNV,GL,LR,BV,RINA,KR,NK,DB,TUV,CWB and CE. International Sales Network About Us SHANDONG JULI WEIDING CO.,LTD has been committed to the development and production of welding materials since its founded in 1997.
Since 2015,JULI has invested great in the introduction of a full range of stainless steel product lines. The new products include:full series of stainless of stainless steel welding consumables, stainless steel wire mesh,stainless steel heat-resistant braided wire,cold heading wire (nail wire,steel ball wire,etc.),and springs wire,re-extruded wire,annealed soft wire,shaped steel wire and other stainless steel products.The designed capacity is 3,000 tons which including 1,000 tons of stainless steel welding materials products and 2,000 tons non-welding products,its products are widely used in high-speed rail,communications,new energy,machinery and equipment manufacturing,petrochemicals,medical equipment,aerospace and other fields,the product has been praised by the majority of domestic and foreign merchants.
PROVINCIAL KEY CHEMICAL LABORATORY
