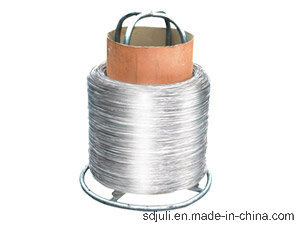

Soldering Stainless Steel Solid Wire (MIG)

Availability:
Quantity:
  • CE, RoHS, GS, ISO9001

  • Customized

  • Stainless Steel

Soldering Stainless Steel Solid Wire (MIG)
Soldering Stainless Steel Solid Wire (MIG)
Soldering Stainless Steel Solid Wire (MIG) Soldering Stainless Steel Solid Wire (MIG)
Welding Wire
\Grade: ER308;ER308L;ER308LSI;ER308LHSI;ER309;ER309L;ER309LSI;ER309LHSI; ER316;ER316L;ER316LSI;ER316LHSI;ER321;ER410;etc
: ,(SAW),(TIG),(MIG). Application: With steady chemical compositions,it can be used in welding and manufacturing semi-finished of SAW,TIG,MIG wire,etc.
Chemical compsition % mm
TYPE C Si Mn P S Ni Cr Mo Cu Others Mpa EL
ER308 0.05 0.25 1.70-2.50 0.025 0.015 9.55-11.00 19.50-22.0 0.3 0.75 0.05 700-950 10-30% 0.80-6.00
ER308L 0.025 0.25 1.70-2.50 0.025 0.015 9.55-11.00 19.50-22.0 ≤ 0.30 ≤ 0.75 0.04 700-950 10-30% 0.80-6.00
ER308LSI 0.025 0.45-0.65 1.70-2.50 0.025 0.02 9.60-11.00 19.50-22.0 ≤ 0.30 ≤ 0.75 0.04 1200-1700 10-30% 0.80-6.00
ER308LHSI 0.025 0.45-0.65 1.70-2.50 0.025 0.02 9.60-11.00 19.50-22.0 ≤ 0.30 ≤ 0.75 0.04 1200-1700 10-30% 0.80-6.00
ER309 0.08 0.25 1.70-2.50 0.025 0.02 12.50-14.00 23.00-25.00 0.75 0.3 0.08 700-950 10-30% 0.80-6.00
ER309L 0.02 0.25 1.70-2.50 0.025 0.02 12.50-14.00 23.00-25.00 0.75 0.3 0.08 700-950 10-30% 0.80-6.00
ER309LSI 0.025 0.75-1.00 1.70-2.50 0.025 0.02 12.50-14.00 23.00-25.00 0.75 0.3 0.08 1200-1700 10-30% 0.80-6.00
ER309LHSI 0.025 0.55-0.65 1.70-2.50 0.025 0.02 12.50-14.00 23.00-25.00 0.75 0.3 0.08 1200-1700 10-30% 0.80-6.00
ER316 0.05 0.25 1.70-2.50 0.025 0.015 11.50-14.00 18.00-20.00 2.00-3.00 0.3 0.05 700-950 10-30% 0.80-6.00
ER316L 0.025 0.25 1.70-2.50 0.025 0.015 11.50-14.00 18.00-20.00 2.00-3.00 0.3 0.05 700-950 10-30% 0.80-6.00
ER316LSI 0.025 0.75-1.00 1.70-2.50 0.025 0.015 11.50-14.00 18.00-20.00 2.00-3.00 0.3 0.05 1200-1700 10-30% 0.80-6.00
ER316LHSI 0.025 0.45-0.65 1.70-2.50 0.025 0.015 11.50-14.00 18.00-20.00 2.00-3.00 0.3 0.05 1200-1700 10-30% 0.80-6.00
ER307 0.05-0.12 0.25 3.30-4.75 0.03 0.015 8.00-10.70 19.50-22.00 0.50-1.50 0.3 0.05 700-950 10-30% 0.80-6.00
ER307SI 0.05-0.12 0.25 3.30-4.75 0.03 0.015 8.00-10.70 19.50-22.00 0.50-1.50 0.3 0.05 700-950 10-30% 0.80-6.00
ER310 0.08-0.14 0.20-0.45 1.70-2.00 0.025 0.015 20.50-22.50 25.00-27.00 0.5 0.3 0.05 700-950 10-30% 0.80-6.00
ER321 0.05 0.25 1.50-2.50 0.03 0.015 9.50-10.50 19.00-20.50 0.5 0.3 0.01 700-950 10-30% 0.80-6.00
ER347 0.05 0.25 1.50-2.50 0.03 0.015 9.30-10.50 19.00-20.50 0.5 0.3 0.01 700-950 10-30% 0.80-6.00
ER385 0.025 0.5 1.00-2.50 0.02 0.01 24.00-26.00 19.00-21.50 0.5 0.3 0.01 700-950 10-30% 0.80-6.00
ER410 0.08-0.12 0.5 0.60 0.025 0.015 0.5 12.50-13.50 0.5 0.3 0.05 500-700 10-20% 0.80-6.00
ER430 0.06 0.5 0.60 0.03 0.015 0.5 16.00-17.00 0.5 0.4 0.03 500-700 10-20% 0.80-6.00
ER2209 0.03 0.9 0.50-2.00 0.03 0.015 7.50-9.50 21.50-23.5 2.5-3.5 0.4 0.08-0.20 700-950 10-30% 0.80-6.00
