How Do You Know What Size Welding Wire To Use

Introduction

Choosing the right welding wire can be a surprisingly complex task, especially when working with different metals, thicknesses, and joint types. Selecting an incorrect wire often leads to weak welds, burn-through, or excessive spatter, creating both safety concerns and project delays. Understanding how wire diameter, type, and feeding interact with material properties is crucial for achieving strong, consistent results.



Match Wire Size to Material and Project Requirements

Assessing Metal Thickness for Optimal Welds

Selecting the proper welding wire diameter begins with evaluating the base metal thickness. Thin metals, typically ranging from 24 to 18 gauge (0.6–1.2 mm), require smaller wire sizes such as 0.023–0.030 inches to prevent burn-through and maintain precise control over the molten pool. Medium-thickness materials, roughly 1/8 to 3/16 inches (3–5 mm), are best welded using 0.035–0.040 inch wires, balancing deposition rate and penetration. Thick metals, exceeding 1/4 inch (6 mm+), demand larger diameters like 0.045 inches or more to ensure structural integrity and sufficient weld penetration.

Pro-Tip: Test wire sizes on scrap material before starting a critical weld; even a small variation in thickness can impact heat input and arc stability.

Evaluating Joint Type and Gap Size

The configuration of the joint and the gap between metal pieces directly affect filler wire selection. Butt joints generally require larger wire to fill the joint evenly, whereas lap joints and corner joints often allow for standard diameter wires. Tee joints may need slightly larger diameters if the gap is wider.

● Tight gaps: Smaller wires allow precise control and reduce spatter.

● Wide gaps: Increase wire diameter or feed multiple passes to avoid lack of fusion.

Considering Penetration and Weld Strength Needs

Desired weld penetration and structural integrity dictate wire diameter selection in conjunction with welding amperage. Larger diameters transfer more heat, enhancing penetration for thick sections, while smaller diameters limit heat input for thin metals. Amperage recommendations often correlate with wire size: 0.023–0.030 inch wires run at 40–130 amps, 0.035 inch wires at 130–180 amps, and 0.045 inch wires at 180–220 amps. Matching wire diameter with amperage ensures consistent bead appearance, prevents burn-through, and achieves mechanical strength required for high-stress joints.



Choosing the Right Wire Type for Different Metals

Solid MIG Wire vs. Flux-Cored Wire

Selecting the proper welding wire, whether solid MIG wire or flux-cored wire, depends on the working environment and the material being welded. Solid MIG wire offers clean welds with minimal post-weld cleanup, ideal for indoor welding on thin to medium steel. In contrast, flux-cored wire provides self-shielding and performs better on dirty or rusty surfaces, making it suitable for outdoor or heavier applications.

Metal-Cored Wire and High-Strength Applications

Metal-cored welding wire, a type of composite GMAW electrode, integrates metallic constituents within a tubular core. This design improves deposition rates and reduces spatter, offering consistent bead profiles even on mill-scaled surfaces. Metal-cored wires excel in high-strength and low-alloy steel applications. Using diameters from 0.045–0.052 inch and adjusting amperage according to the wire ensures optimal penetration and fusion for structural joints.

Aluminum and Stainless Steel Wire Considerations

Aluminum welding requires soft-feed welding wire like ER4043 or ER5356 due to the lower melting point. Controlling wire feed speed, torch angle, and travel rate is essential to prevent burn-through and porosity. For stainless steel, ER308L or ER316L wires should be used with suitable shielding gas—such as Argon or tri-gas blends—to preserve corrosion resistance and avoid oxidation. Wire diameter, generally between 0.023–0.035 inch, must match material thickness and amperage to ensure consistent fusion and mechanical strength.



Aligning Wire Selection with Welding Position and Technique

Flat, Horizontal, Vertical, and Overhead Welding

Wire selection must account for welding position, as the orientation affects molten pool behavior and overall weld quality. Flat welding allows the use of slightly larger wire diameters since gravity aids in maintaining puddle stability, whereas horizontal welding benefits from intermediate diameters to prevent sagging along the lower edge. Vertical welding requires smaller wires to control downward flow of molten metal, and overhead welding demands precise wire control and reduced diameters to prevent drooping and excessive spatter.

MIG vs. TIG Applications and Wire Feeding Differences

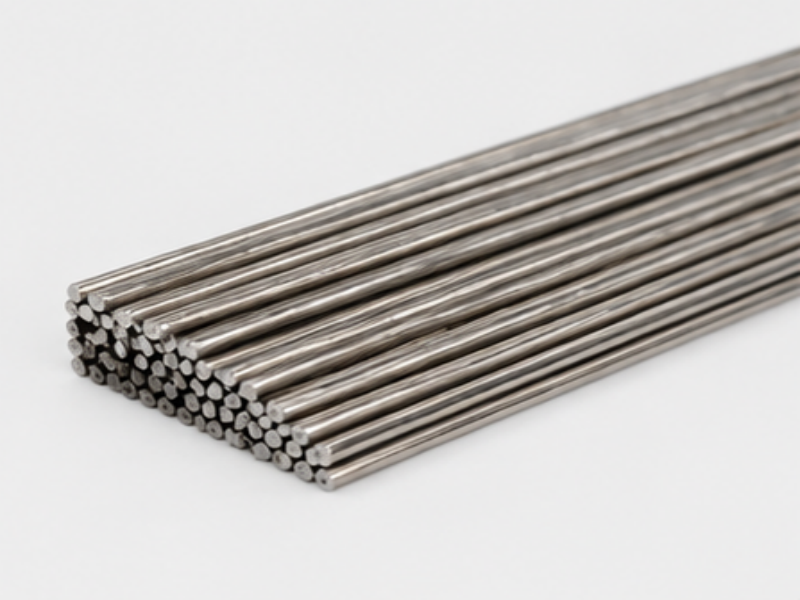

MIG welding relies on a continuous wire feed, providing a high deposition rate and faster welding speed, making it suitable for medium-to-thick metals and production-oriented applications. TIG welding, in contrast, uses a filler rod added manually while the torch operates, offering superior precision and control, ideal for thin metals, aluminum, and stainless steel. While MIG prioritizes efficiency, TIG excels in bead appearance and minimal heat distortion. Selecting the correct wire diameter and feed mechanism is essential to align with the chosen welding technique.

Adjusting Wire Feed Speed and Amperage for Performance

Optimizing weld quality requires tuning wire feed speed, voltage, and amperage according to wire diameter and base metal thickness. Smaller diameters need lower amperage and faster travel speeds to prevent burn-through, whereas larger diameters require higher amperage for adequate penetration. Consistent feed speed prevents erratic arc behavior, ensuring uniform bead formation.



Avoiding Common Mistakes and Troubleshooting

Selecting Incorrect Wire Diameter

Using an improper wire diameter can lead to weld defects such as lack of fusion, burn-through, and overweld. Small diameters applied to thick metals may fail to achieve adequate penetration, whereas oversized wires on thin materials can burn through the base metal or create excessive reinforcement. Testing on scrap material is strongly recommended to validate wire size against metal thickness. Consistently monitoring bead uniformity ensures that adjustments can be made before committing to critical joints.

Ignoring Equipment Compatibility

Equipment readiness is critical for consistent welding performance. Mismatched gun liners, drive rolls, or contact tips can cause erratic wire feed, bird-nesting, and poor arc stability. Verifying that drive rolls match the selected wire diameter and that the contact tip is appropriately sized prevents feed interruptions. Regular inspection of the MIG gun, including liner alignment, ensures smooth wire delivery and reduces the risk of weld defects.

Pro-Tip: Create a pre-weld checklist to confirm gun readiness and component alignment before starting any critical weld.

Overlooking Material-Specific Requirements

Different base metals demand specific wire chemistry for optimal performance. Mild steel wires, like ER70S-6, tolerate light surface contaminants, whereas aluminum alloys require ER4043 or ER5356 to accommodate low melting points. Stainless steel welding calls for ER308L or ER316L with suitable shielding gases to maintain corrosion resistance and avoid oxidation. Neglecting surface conditions, such as rust or mill scale, may compromise mechanical properties and lead to porosity or weak joints. Pre-cleaning surfaces and matching wire composition to metal grade are essential steps to maintain weld integrity.

Pro-Tip: When dealing with contaminated or rusty surfaces, select flux-cored or metal-cored wires that offer enhanced deoxidization and consistent penetration, ensuring structural reliability.



Maintenance, Storage, and Safety Considerations

Proper Wire Handling and Storage Practices

Maintaining welding wire quality begins with proper handling and storage to prevent rust, moisture, and tangling. Store wire spools in a dry, climate-controlled environment with relative humidity below 50% and temperatures between 10–30 °C. Vertical positioning of spools reduces uneven tension and deformation. Always handle wires with clean, dry gloves and avoid dropping spools to maintain surface integrity.

Pro-Tip: Implement a first-in, first-out (FIFO) rotation system to ensure older wire stock is used before newer supplies, preserving wire consistency and reducing waste.

Ensuring Shielding Gas Compatibility

Selecting the proper shielding gas is essential for consistent arc stability and weld quality. Argon offers clean, smooth welds for aluminum and stainless steel, while CO2 or Argon/CO2 blends are common for mild steel. Helium can be added to improve heat input for thicker aluminum. Flow rates must be adjusted according to wire diameter: larger diameters typically require higher flow to maintain adequate shielding coverage, whereas thinner wires need lower flow to prevent turbulence and oxidation.

Pro-Tip: Always cross-check manufacturer recommendations for shielding gas blends relative to wire type and metal grade to minimize porosity and arc instability.

Safety Gear and Best Practices

Proper protective equipment mitigates hazards associated with arc welding. Use helmets with appropriate shade filters, flame-resistant gloves, aprons, and full-body protection to prevent burns and UV exposure. Ensure proper ventilation to avoid inhaling fumes. Maintaining an organized workspace, clear of flammable materials, aligns with professional standards and promotes operational efficiency. Following these precautions enhances both personal safety and weld quality, demonstrating adherence to industry best practices.



Conclusion

Selecting the appropriate welding wire is a critical step for achieving strong, consistent welds across different metals and joint configurations. By carefully assessing material thickness, joint type, wire diameter, and feeding technique, welders can minimize defects and improve overall efficiency. Practical testing and equipment calibration further ensure reliable results in both hobbyist and professional applications.

SHANDONG JULI WELDING Co., Ltd, provides a range of welding wire options designed to meet these varied requirements. Using wires with consistent composition and diameter helps maintain arc stability, supports precise penetration, and reduces the need for rework, allowing users to focus on quality and productivity throughout their welding projects.



FAQ

Q: How do I determine the correct welding wire size for my project?

A: Match the welding wire diameter to the metal thickness, joint type, and desired penetration. Thinner metals use smaller wires, while thicker metals require larger diameters for proper fusion.

Q: What are the main types of welding wire and their uses?

A: Solid MIG wire is ideal for clean indoor welds, flux-cored wire performs well outdoors or on contaminated steel, and metal-cored wire suits high-strength or heavy-duty applications.

Q: How does welding position affect wire selection?

A: Flat and horizontal positions allow larger wires, while vertical or overhead welding benefits from smaller diameters to control the molten pool and prevent sagging.

Q: Can I use the same welding wire for steel, aluminum, and stainless steel?

A: No. Wire composition must match the base metal: ER70S-6 for steel, ER4043/5356 for aluminum, and ER308/316L for stainless steel to ensure proper fusion and corrosion resistance.

Q: What happens if I choose the wrong wire diameter?

A: Using a wire that is too small may cause lack of penetration, while oversized wires can burn through thin metals or create excessive weld reinforcement, affecting structural integrity.

Q: How do amperage and wire feed speed relate to welding wire size?

A: Larger diameter wires require higher amperage and adjusted feed speed for consistent penetration, while smaller wires need lower amperage to avoid overheating and maintain weld control.
