What Are The Different Types of Electrodes Used in Welding

Introduction

Welding electrodes play a critical role in determining the strength, appearance, and durability of welded joints. Choosing the right electrode can be confusing, with options ranging from stick and TIG rods to flux-cored and metal-cored wires, each suited for different metals, thicknesses, and welding positions. Understanding their classifications, coatings, and applications helps prevent common issues like cracking, porosity, or excessive spatter. Readers will gain insight into core electrode types, ideal uses for various metals, and practical selection tips for both everyday repairs and precision welding tasks.

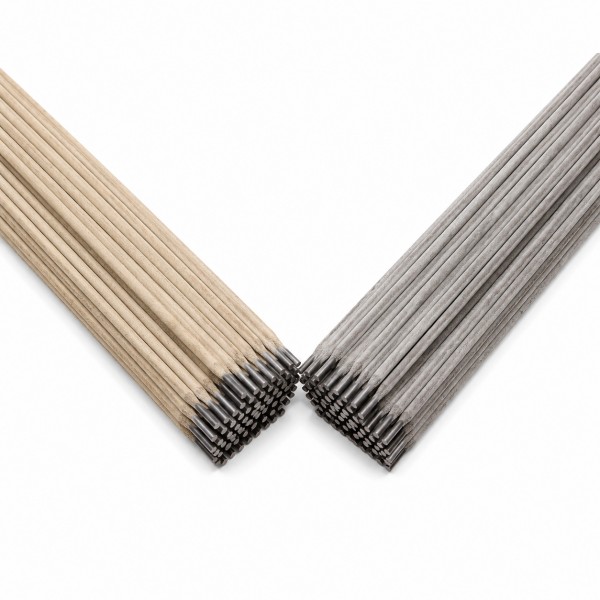

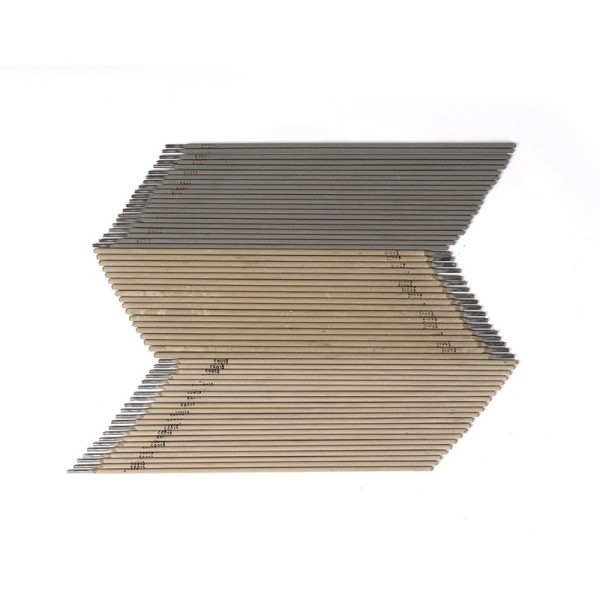

Consumable Electrodes (Stick Welding / SMAW)

Mild Steel Electrodes

Consumable electrodes for mild steel are widely used in construction and general fabrication due to their versatility and reliable weld quality. E6010 rods are characterized by deep penetration and a fast-freezing slag, making them ideal for root passes in pipelines and structural welds exposed to outdoor conditions. The E6011 variant maintains similar penetration but offers compatibility with both AC and DC currents, enhancing flexibility in field repairs where power sources may vary. For lighter applications, E6013 electrodes produce a smooth arc with moderate penetration, making them suitable for thin sheet metal and beginner welders. Low-hydrogen coatings, particularly on E7018 electrodes, minimize the risk of hydrogen-induced cracking and ensure stronger, ductile welds in load-bearing structures.

Pro-Tip: When using low-hydrogen electrodes, always store rods in a dry oven at 250–300°F (121–149°C) and avoid prolonged exposure to humidity. Moisture absorption can elevate diffusible hydrogen, increasing the risk of underbead cracking in critical welds. Additionally, maintain the correct travel angle and speed; E6010 and E6011 require a whipping motion for optimal penetration, whereas E7018 benefits from a slight drag technique for smooth, low-spatter welds.

Stainless Steel Electrodes

Stainless steel electrodes, including E308L, E309L, and E316L, provide superior corrosion resistance essential for chemical processing equipment, food-grade machinery, and other industrial applications. These rods typically feature a flux coating designed to stabilize the arc while minimizing contamination of the weld pool. Selecting the correct electrode for a specific alloy composition ensures that chromium and nickel content in the filler metal matches the base material, preventing intergranular corrosion or compromised mechanical properties. A moderate penetration profile and controlled slag formation enhance the aesthetic finish of the weld bead while preserving long-term structural integrity.

Cast Iron and Specialty Electrodes

Cast iron and specialty electrodes, often nickel-based, address the challenges of joining high-carbon materials and repairing machinery components. Nickel-enriched electrodes provide better crack resistance, compensate for shrinkage, and enhance metallurgical compatibility with gray and ductile cast irons. These electrodes require preheating of the base metal to approximately 200–300°C to reduce thermal stress and prevent rapid cooling, which could otherwise lead to brittle welds. Applications include automotive engine repairs, heavy equipment maintenance, and critical component refurbishment where mechanical performance is non-negotiable. Operators should consider a controlled peening process after welding to relieve residual stresses and further improve joint toughness.

Non-Consumable Electrodes (TIG / GTAW)

Tungsten Electrodes for Precision Welding

Tungsten electrodes are the cornerstone of precision TIG welding, offering consistent arc stability without melting into the weld pool. Pure tungsten electrodes, often identified by a green color band, are optimal for AC welding of aluminum and magnesium, forming a balled tip naturally for clean arcs. Thoriated electrodes, marked with red, enhance arc starting and carry high currents efficiently, although care must be taken during grinding due to radioactive dust. Ceriated (grey) and lanthanated (gold/blue) tungsten electrodes combine low amperage versatility with long service life on both AC and DC currents. Zirconiated tungsten, brown-banded, excels under high AC amperages and resists contamination when welding reactive metals. Selecting the correct tungsten type prevents arc wandering, avoids electrode contamination, and ensures consistent penetration for thin or delicate components.

Always maintain correct tip shape during grinding to preserve arc consistency. Over-grinding reduces electrode life and can introduce tungsten inclusions into the weld. When welding reactive metals like titanium, ensure inert gas coverage extends beyond the weld puddle to prevent oxidation.



When to Use Non-Consumable Electrodes

Non-consumable electrodes are ideal for precision applications where control and quality surpass raw deposition speed. Aerospace components, automotive bodywork, and thin sheet metals benefit from tungsten electrodes due to their ability to maintain a stable, concentrated arc with minimal contamination. Compared to consumable electrodes, they provide finer control over penetration and bead profile, reducing spatter and post-weld cleanup. Operators should choose electrode diameter proportional to material thickness and ensure consistent gas shielding. This selection reduces distortion and metallurgical defects in critical structures.

For delicate joints, use a smaller-diameter tungsten and short arc length to prevent burn-through. Combining proper electrode choice with controlled welding parameters optimizes mechanical performance and surface finish.



Flux-Cored and Metal-Cored Electrodes

Self-Shielded vs Gas-Shielded Flux-Cored Wires

Flux-cored wires provide a versatile solution for welding environments where shielding gas delivery is challenging or inconsistent. Self-shielded flux-cored wires generate their own protective gases during welding, making them ideal for outdoor work or windy conditions, though they typically produce higher spatter and a slag crust that must be removed after welding. Gas-shielded flux-cored wires, in contrast, require external shielding gas, which offers cleaner welds with reduced spatter, making them suitable for indoor or controlled environments. Choosing between these types depends on material thickness, positional requirements, and environmental factors.

Applications and Advantages

Flux-cored and metal-cored electrodes excel in high-volume or heavy-duty fabrication where standard MIG or SMAW might be less efficient. Construction projects often benefit from the high deposition rates of these wires, which accelerate welding on structural steel while maintaining acceptable weld quality. Heavy equipment manufacturing uses flux-cored wires to penetrate rusted or painted surfaces without pre-cleaning, ensuring durability under field conditions. Metal-cored wires offer additional advantages, including lower spatter, improved arc stability, and suitability for automated welding setups where consistent bead profile is essential. Selecting the correct wire type enables faster production without sacrificing mechanical performance or structural integrity.



Electrode Selection Logic

Matching Electrode to Metal and Thickness

Selecting the right electrode requires careful evaluation of the base metal type and thickness to ensure proper fusion and structural integrity. For thin metals under 3 mm, rods like E6013 provide moderate penetration and minimize the risk of burn-through, while thicker materials above 6 mm benefit from E7018 or E7024, offering higher tensile strength and deeper penetration. Root passes in pipelines or critical joints often utilize E6010 due to its fast-freezing, high-penetration arc. Matching electrode diameter to material thickness is essential: smaller diameters allow precise control on thin sheets, whereas larger diameters improve deposition rate and reduce welding time on heavy sections.

Coating Considerations

Electrode coatings significantly influence arc stability, penetration, and slag behavior. Rutile coatings produce smooth arcs and are ideal for clean, thin materials, enhancing bead appearance and minimizing spatter. Cellulosic coatings deliver high penetration for vertical-down positions and are preferred for dirty or rusted metals. Basic coatings, often low-hydrogen, reduce hydrogen-induced cracking and provide superior mechanical properties for high-strength steels. Beginners benefit from matching coating type to the application: rutile coatings ease control, while low-hydrogen rods are crucial for structural integrity in load-bearing welds.

Pro-Tip: Avoid overestimating electrode versatility. Selecting a rod with incompatible coating can lead to porosity or undercut. For mixed-position jobs, prioritize all-position rated electrodes to maintain consistent weld quality across orientations.

Common Mistakes and How to Avoid Them

Mistakes in electrode selection frequently compromise weld strength and appearance. Using a thin-diameter rod on thick sections can result in insufficient penetration, while overly large rods on thin metal increase burn-through risk. Choosing an electrode incompatible with the welding position leads to unstable arcs and uneven beads. Environmental factors, such as moisture or wind, may further exacerbate issues if self-shielded electrodes are used incorrectly. Consistently reviewing material specifications, welding position, and coating type before starting a job reduces these risks and improves overall weld performance.



Conclusion

Understanding the various types of welding electrodes is essential for achieving consistent, high-quality welds across different metals and applications. From SMAW stick rods to TIG tungsten electrodes and flux-cored wires, each type offers unique characteristics in terms of penetration, arc stability, and suitability for specific materials or welding positions. Proper selection, guided by material thickness, coating type, and welding conditions, helps minimize defects and improves overall efficiency.

SHANDONG JULI WELDING Co., Ltd. provides a range of welding electrodes designed to support these practical considerations. Their products offer reliable performance across structural, industrial, and precision applications, enabling welders to maintain consistent quality, reduce rework, and achieve predictable results in both fabrication and repair tasks.



FAQ

Q: What are welding electrodes and why are they important?

A: Welding electrodes are rods or wires that conduct electrical current to join metals, providing filler material and stabilizing the arc for consistent, strong welds.

Q: What is the difference between consumable and non-consumable electrodes?

A: Consumable electrodes melt into the weld to form filler metal, while non-consumable electrodes, like tungsten rods, only conduct the arc without melting.

Q: Which electrode types are best for welding mild steel?

A: E6010, E6011, E6013, and E7018 are common for mild steel, offering varying penetration, arc stability, and suitability for different welding positions.

Q: How do electrode coatings affect welding performance?

A: Coatings like rutile, cellulosic, or low-hydrogen influence arc stability, penetration depth, spatter, and slag formation, impacting weld quality and mechanical properties.

Q: Can welding electrodes be used for stainless steel and other alloys?

A: Yes, specialized electrodes such as E308L, E309L, and nickel-based rods are designed for stainless steel, aluminum, and other alloys, ensuring corrosion resistance and proper fusion.

Q: What common mistakes should be avoided when selecting electrodes?

A: Using the wrong type for material thickness, welding position, or coating can cause porosity, undercut, or weak welds, reducing structural integrity and increasing rework.
