In the professional welding industry, the quality of a finished joint is determined long before the arc is even struck. While much attention is paid to the skill of the welder and the settings of the machine, one of the most critical variables is often the physical condition of the welding electrodes. These consumables are highly engineered products, but they are also sensitive to their environment. Improper storage can transform a high-performance electrode into a liability, leading to structural failures and costly rework.
This guide explores the essential protocols for storing welding electrodes to ensure they maintain their mechanical properties and chemical integrity from the factory floor to the final weld bead.
The Science of Moisture Absorption (Rehydration)
To understand why storage is so critical, one must look at the chemical composition of the flux coating. Most welding electrodes are designed with a coating that serves to protect the weld pool, but this very coating is often hygroscopic, meaning it naturally attracts and absorbs moisture from the surrounding air.
Hygroscopic Coatings Explained
The flux coating on an electrode is a complex mixture of minerals, silicates, and organic materials. In low-hydrogen electrodes, these materials are specifically formulated to have minimal moisture content. However, the moment these electrodes are exposed to humid air, they begin to absorb water molecules. When electricity passes through a damp electrode, the heat of the arc breaks the water ($H_2O$) down into its base elements: oxygen and hydrogen.
The Consequences of Improper Storage
The introduction of hydrogen into the welding process is catastrophic for high-strength steel. This leads to a phenomenon known as Hydrogen-Induced Cracking (HIC), or "cold cracking." These cracks often occur hours or even days after the weld has cooled, making them difficult to detect without ultrasonic testing. Beyond cracking, moisture-laden welding electrodes cause excessive spatter, an unstable arc, and porosity—tiny gas pockets trapped in the weld that weaken the entire structure.
General Storage Rules for All Electrode Types
Regardless of the specific classification, all welding electrodes benefit from a controlled environment. The goal is to prevent the flux from degrading and the core wire from oxidizing.
Temperature and Humidity Control
The storage area should be kept at a consistent temperature, generally between 15°C and 30°C. More importantly, the relative humidity should be kept as low as possible, ideally below 50%. It is vital to keep the storage room temperature above the "dew point" to prevent condensation from forming on the surface of the electrodes, which would cause immediate damage to the flux.
Inventory Management (FIFO)
Industrial facilities should always employ the First-In, First-Out (FIFO) method. Welding electrodes do have a shelf life, even when stored correctly. Over years, the binders in the flux can become brittle. By labeling every shipment with its arrival date and using the oldest stock first, companies can ensure that they are never using "stale" material on critical projects.
Physical Protection
Electrodes should be stored in their original packaging until they are ready for use. The flux coating is relatively fragile; if boxes are dropped or stacked too high, the flux can chip or crack. An electrode with missing flux will not provide adequate gas shielding, leading to an immediate weld defect known as "fingernailing" or an erratic arc.
Specialized Storage for Low-Hydrogen Electrodes (e.g., E7018)
Low-hydrogen welding electrodes, such as the E7018, require the most stringent storage protocols because their performance depends entirely on the absence of moisture.
The Hermetically Sealed Container
Manufacturers usually ship these electrodes in vacuum-sealed tins or foil-lined boxes. Once the seal is broken, the "clock" starts. In high-humidity environments, these electrodes can become compromised in as little as four hours. Welders should only take out as many rods as they can use in a short period, keeping the rest in a heated environment.
The Role of Electrode Holding Ovens
In professional shops, once a container is opened, the electrodes are immediately transferred to a holding oven. These ovens maintain a constant temperature, typically between 120°C and 150°C. This heat ensures that any ambient moisture is constantly evaporated before it can settle into the flux. For field work, portable heated "quivers" are used to keep the rods warm while the welder is on a scaffold or in a remote location.
Re-baking Procedures (Reconditioning)
If low-hydrogen electrodes have been exposed to the atmosphere for too long, they may require "re-baking." This is a process of heating the electrodes to a much higher temperature (often between 250°C and 400°C) for several hours to drive out deeply embedded moisture. However, electrodes can typically only be re-baked once or twice before the chemical binders in the flux begin to break down permanently.
Storage Guidelines for Cellulosic and Rutile Electrodes
Not all welding electrodes react to moisture in the same way. In fact, some types require a small amount of moisture to function correctly.
Cellulosic Rods (e.g., E6010): The Exception
Cellulosic electrodes are the "wild card" of the welding world. Their coating contains organic materials like wood flour and cotton. For these rods to produce their characteristic deep-penetrating, forceful arc, they actually need a moisture content of about 3% to 7%. If you store E6010 rods in a high-temperature low-hydrogen oven, you will dry them out too much, causing the arc to become weak and the coating to char. They should be stored in a cool, dry place but never in a rod oven.

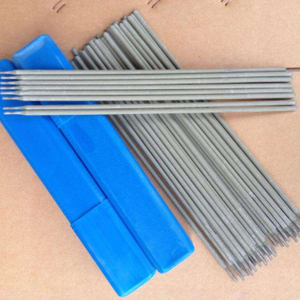

Rutile Rods (e.g., E6013): General Maintenance
Rutile electrodes are more forgiving than low-hydrogen types. They are designed for general-purpose welding and have a coating that is naturally more resistant to moisture. However, they should still be kept in a dry area. If they become damp, they will produce a "popping" sound during welding and the slag will become very difficult to remove.
Best Practices for Industrial Warehousing
For distributors and large-scale construction firms, how you stack your pallets is just as important as the room temperature.
Pallet Placement and Airflow
Never store boxes of welding electrodes directly on a concrete floor. Concrete is porous and can wick moisture upward into the cardboard packaging. Always use wooden or plastic pallets. Furthermore, pallets should be kept away from exterior walls, where temperature fluctuations are most extreme, to encourage even airflow around the stock.
Environmental Monitoring Tools
A professional warehouse should be equipped with a digital hygrometer. This allows the facility manager to track humidity levels in real-time. If the humidity spikes during a rainy season, dehumidifiers or supplemental heating should be activated to protect the inventory.
Signs of Improperly Stored Electrodes: A Checklist
Before starting a weld, a quick inspection can save hours of grinding and re-welding later.
Visual Inspection: Look for "efflorescence," a white powdery substance on the surface of the rod. This is a sign that the chemicals in the flux have reacted with moisture. Also, check for any rust appearing on the exposed tip of the core wire.
Performance Indicators: If the arc makes a sharp "popping" or "crackling" sound, it is a sign that water is being vaporized in the arc. If the slag is stubborn and won't lift easily, the flux is likely compromised.
The "Bend Test": If you gently bend a sacrificial electrode, the flux should stay adhered to the wire until a sharp crack occurs. If the flux crumbles and falls off in large chunks, it has likely suffered moisture damage or has been stored for too many years.
Conclusion: Quality Storage Leads to Quality Welds
The integrity of a weld is a reflection of the care taken throughout the entire process. Storing welding electrodes correctly is not a burdensome chore; it is a fundamental part of quality control. By maintaining temperature, managing humidity, and using the correct heating equipment for specific rod types, you ensure that every weld meets the required safety and strength standards.
Ensuring Integrity with Shandong Juli Welding Co., Ltd.
The journey toward a perfect weld starts with superior manufacturing and ends with professional storage. At Shandong Juli Welding Co., Ltd., we take the first step seriously. Across our 150,000-square-meter facility in Dezhou, we utilize advanced production techniques and rigorous quality testing to ensure every batch of welding electrodes is produced with peak mechanical properties.
With a total capacity of 450,000 metric tons per year, we are not just a manufacturer; we are a global partner in infrastructure. Our export-grade packaging is specifically designed to withstand the rigors of international shipping, maintaining the dry, stable environment your consumables need. When you choose Shandong Juli Welding, you are choosing a leading Chinese brand that understands the value of technical excellence and the importance of delivering a product that is ready to perform the moment it reaches your job site.
